ANDREW / COMMSCOPE

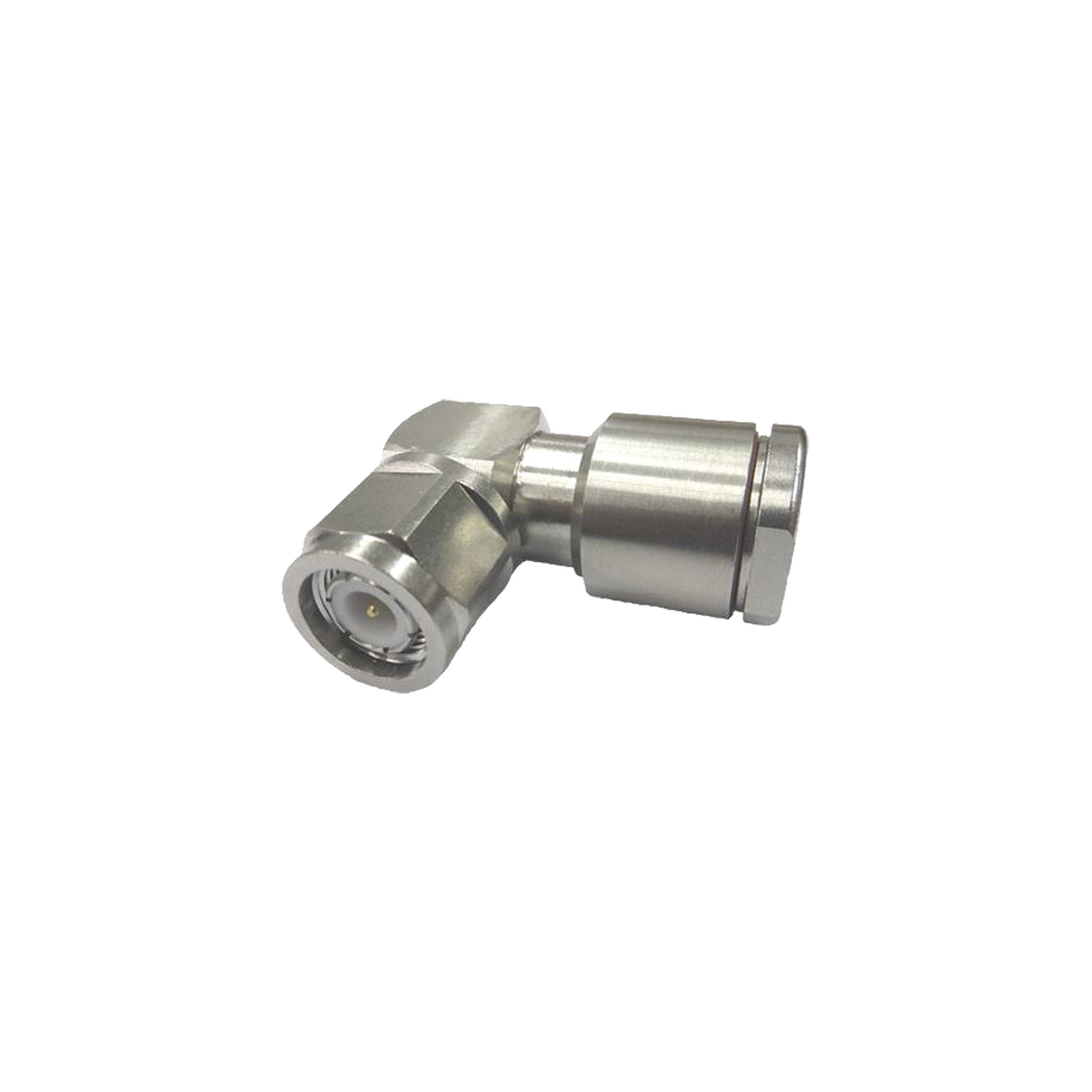

Conector TNC Macho en ángulo para cable CNT-400, RG-8
Conector TNC Macho en ángulo para cable CNT-400, RG-8
Precio habitual
$ 887.20 MXN
Precio habitual
Precio de oferta
$ 887.20 MXN
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
General Specifications
Interface TNC Male
Body Style Right angle
Brand CNT®
Electrical Specifications
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 500.00 V
dc Test Voltage 1500 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 5.00 kW
Insertion Loss, typical 0.05 dB
Interface TNC Male
Body Style Right angle
Brand CNT®
Electrical Specifications
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 500.00 V
dc Test Voltage 1500 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 5.00 kW
Insertion Loss, typical 0.05 dB
