ANDREW / COMMSCOPE

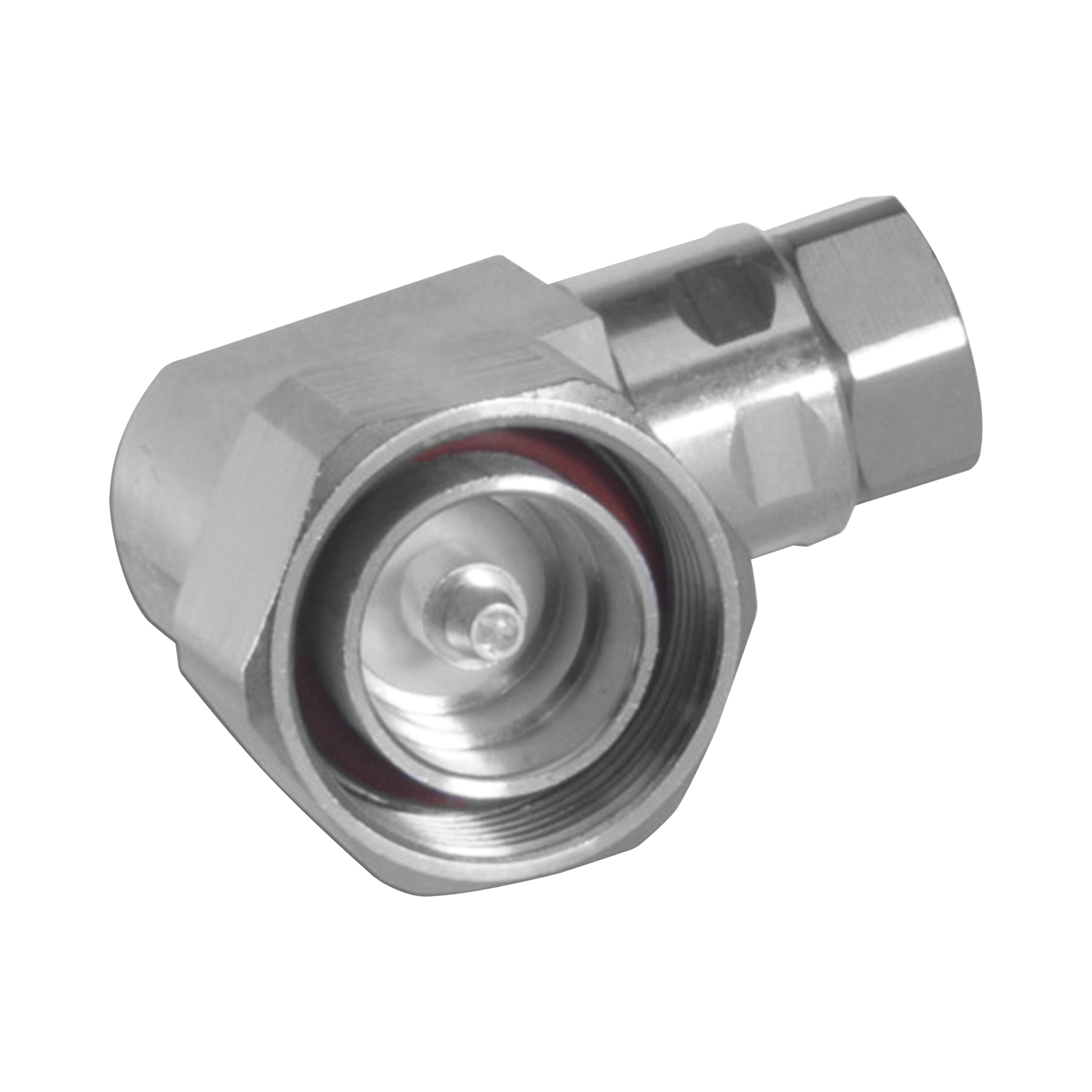

Conector DIN 7-16 Macho De Angulo Recto Para Cable FSJ450B
Conector DIN 7-16 Macho De Angulo Recto Para Cable FSJ450B
Precio habitual
$ 1,776.55 MXN
Precio habitual
Precio de oferta
$ 1,776.55 MXN
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 7500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 884.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 1.0 kW @ 900 MHz |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical
| 0.05 dB |
| Shielding Effectiveness | -110 dB |
